✨📦✨Make it a package

.Rbuildignore

@@ -1,3 +1,4 @@
 ^LICENSE\.md$
 ^.*\.Rproj$
 ^\.Rproj\.user$
+R/extra\.R

DESCRIPTION

@@ -9,3 +9,10 @@ LazyData: true
 ByteCompile: true
 URL: https://github.com/gadenbuie/ggpomological
 BugReports: https://github.com/gadenbuie/ggpomological/issues
+RoxygenNote: 6.0.1
+Roxygen: list(markdown = TRUE)
+Depends:
+    ggplot2
+Imports:
+    magick,
+    extrafont

NAMESPACE

@@ -0,0 +1,8 @@
+# Generated by roxygen2: do not edit by hand
+
+export(paint_pomological)
+export(scale_color_pomological)
+export(scale_colour_pomological)
+export(scale_fill_pomological)
+export(theme_pomological)
+export(theme_pomological_nobg)

R/extra.R

@@ -0,0 +1,85 @@
+# # load all colors
+# x <- readLines("pomological.css")
+# x <- stringr::str_extract(x, "#[0-9a-f]{6}")
+# x <- x[!is.na(x)]
+#
+# gg_color_hue <- function(n) {
+#   hues = seq(15, 375, length = n + 1)
+#   hcl(h = hues, l = 65, c = 100)[1:n]
+# }
+#
+# col2hsv <- function(x) rgb2hsv(col2rgb(x))
+#
+#
+# dist2ref_color <- function(color, ref_color) {
+#   stopifnot(length(ref_color) == 1)
+#   x <- col2hsv(c(color, ref_color)) %>%
+#     t %>%
+#     dist %>%
+#     as.matrix %>%
+#     {tibble('ref_color' = .[length(color) + 1, 1:length(color)])}
+#   names(x) <- ref_color
+#   x
+# }
+#
+# compare_to_ggplot <- function(compare_to_ggplot) {
+#   pomo_gg <- map_dfr(set_names(compare_to_ggplot), ~ as_tibble(t(col2hsv(.))), .id = "color") %>%
+#     bind_cols(
+#       map_dfc(gg_color_hue(set_names(length(compare_to_ggplot))), ~ dist2ref_color(compare_to_ggplot, .))
+#     ) %>%
+#     tidyr::gather('ggplot_color', 'dist', -color:-v) %>%
+#     # group_by(color) %>%
+#     # do(dist = min(.$dist), ggplot_color = filter(., dist == min(.$dist))$ggplot_color) %>%
+#     # mutate(dist = map_dbl(dist, ~ .), ggplot_color = map_chr(ggplot_color, ~ .)) %>%
+#     # ungroup %>%
+#     mutate(ggplot_color = factor(ggplot_color, gg_color_hue(length(compare_to_ggplot)))) %>%
+#     arrange(ggplot_color)
+#   warning(glue::glue("Palette has {length(compare_to_ggplot)} colors"), call. = FALSE)
+#   ggplot(pomo_gg) +
+#     aes(x = ggplot_color, y = dist, fill = color, label = color) +
+#     geom_label(color = 'white')+
+#     # geom_point(shape = 15, size = 5) +
+#     scale_fill_identity()
+# }
+#
+# data_frame(
+#   'color' = color_options,
+#   # 'group' = sample(c('pomo', 'logical'), length(color_options), replace = TRUE),
+#   'x' = pmap_chr(tidyr::crossing(letters, letters), ~paste0(..1, ..2))[1:length(color_options)],
+#   'y' = 1:length(color_options)
+# ) %>%
+#   ggplot() +
+#   aes(x, y, fill = color) +
+#   # geom_point(size = 8)+
+#   geom_col()+
+#   geom_text(aes(label = color), hjust = -0.1) +
+#   scale_fill_identity() +
+#   coord_flip() +
+#   theme_minimal() +
+#   #theme_xkcd() +
+#   theme(
+#     text = element_text(family = 'gWriting', size = 16),
+#     plot.background = element_rect(fill = base_colors["paper_light"], color = NA),
+#     panel.grid = element_line(color = "#efe1c6"),
+#     axis.text = element_text(color = "#655843", size = 14)
+#   )
+#
+# ordered_plot <- function(color_options, dichromat = FALSE) {
+#   if (dichromat) {
+#     dichr_type <- sample(c("deutan", "protan", "tritan"), 1)
+#     message(glue::glue("color blindness: {dichr_type}"))
+#     color_options <- dichromat::dichromat(color_options, dichr_type)
+#   }
+#   data_frame(
+#     color = color_options,
+#     x = 1,
+#     y = 1:length(color_options)
+#   ) %>%
+#     ggplot() +
+#     aes(x, y, fill = color, label = color) +
+#     geom_tile() +
+#     geom_label(color = 'white') +
+#     scale_fill_identity()+
+#     scale_y_continuous(breaks = 1:length(color_options), labels = 1:length(color_options))+
+#     theme_minimal()
+# }

R/ggpomological-package.R

@@ -0,0 +1,8 @@
+#' A Pomological ggplot2 Theme
+#'
+#' This package provides a ggplot2 theme inspired by the
+#' [USDA Pomological Watercolors collection](https://usdawatercolors.nal.usda.gov/pom)
+#' and by Aron Atkins's ([\@aronatkins](https://twitter.com/aronatkins]))
+#' [talk on parameterized RMarkdown](https://github.com/rstudio/rstudio-conf/tree/master/2018/Fruit_For_Thought--Aron_Atkins)
+#' at [rstudio::conf 2018](https://www.rstudio.com/conference/).
+"_PACKAGE"

R/paint_pomological.R

@@ -0,0 +1,68 @@

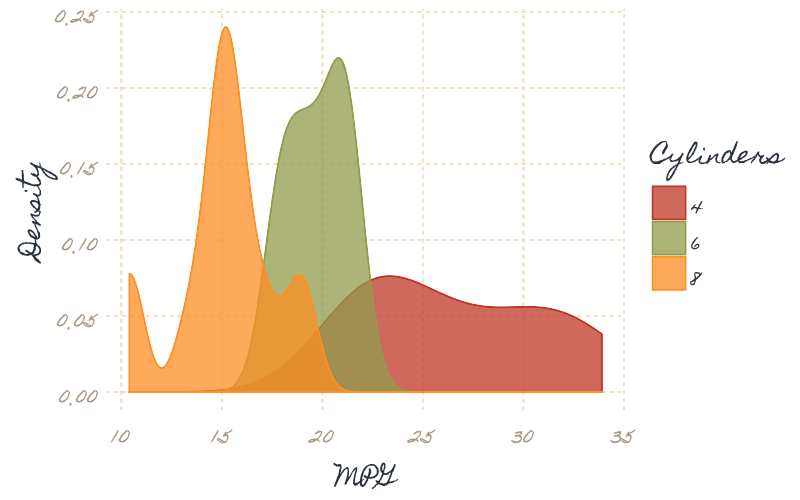

+#' Paint a ggpomological watercolor
+#'
+#' Uses [magick] to paint a pomological watercolor. (Paints your plot onto a
+#' pomological watercolor style paper, with texture overlay.)
+#'
+#' @references https://usdawatercolors.nal.usda.gov/pom
+#' @seealso [theme_pomological]
+#' @param pomo_gg A pomologically styled ggplot2 object. See [theme_pomological()]
+#' @param width Width of output image in pixels
+#' @param height Height of output image in pixels
+#' @param pointsize Text size for plot text
+#' @param outfile Optional name for output file if you'd like to save the image
+#' @param pomological_background Paper image, defaults to paper texture provided
+#'   by ggpomological.
+#' @param pomological_overlay Overlay texture. Set to `NULL` for no texture.
+#' @inheritDotParams magick::image_graph res clip antialias
+#' @export
+paint_pomological <- function(
+  pomo_gg,
+  width = 800,
+  height = 500,
+  pointsize = 16,
+  outfile = NULL,
+  pomological_background = pomological_images("background"),
+  pomological_overlay = pomological_images("overlay"),
+  ...
+) {
+  if (!requireNamespace("magick", quietly = TRUE)) {
+    stop("The package magick is required for `paint_pomological()`. ",
+         "Please install with `install.packages('magick')`")
+  }
+  if (!file.exists(pomological_background)) {
+    warning(paste0("Cannot find file \"", pomological_background, "\""), call. = FALSE)
+  }
+
+  # Paint figure
+  gg_fig <- magick::image_graph(width, height, bg = "transparent", pointsize = pointsize, ...)
+  print(pomo_gg)
+  dev.off()
+
+  if (!is.null(pomological_overlay) && file.exists(pomological_overlay)) {
+    pomo_over <- magick::image_read(pomological_overlay)
+    pomo_over <- magick::image_resize(pomo_over, paste0(width, "x", height, "!"))
+    gg_fig <- magick::image_composite(gg_fig, pomo_over, "blend", compose_args = "15")
+  }
+
+  # Paint background
+  if (file.exists(pomological_background)) {
+    pomo_bg <- magick::image_read(pomological_background)
+    pomo_bg <- magick::image_resize(pomo_bg, paste0(width, "x", height, "!"))
+    pomo_bg <- magick::image_crop(pomo_bg, paste0(width, "x", height))
+
+    # Paint figure onto background
+    pomo_img <- magick::image_composite(pomo_bg, gg_fig)
+  } else pomo_img <- gg_fig
+
+  if (!is.null(outfile)) {
+    # Do you want your picture framed?
+    magick::image_write(pomo_img, outfile)
+  }
+  pomo_img
+}
+
+pomological_images <- function(which = c("background", "overlay")) {
+  which <- match.arg(which)
+  system.file("inst/images", paste0("pomological_", which, ".png"),
+              package = "ggpomological")
+}

R/scale_pomological.R

@@ -0,0 +1,45 @@
+pomological_palette <- c(
+   "#c03728" #red
+  ,"#919c4c" #green darkish
+  ,"#fd8f24" #orange brighter
+  ,"#f5c04a" #yelloww
+  ,"#e68c7c" #pink
+  ,"#828585" #light grey
+  ,"#c3c377" #green light
+  ,"#4f5157" #darker blue/grey
+  ,"#6f5438" #lighter brown
+)
+

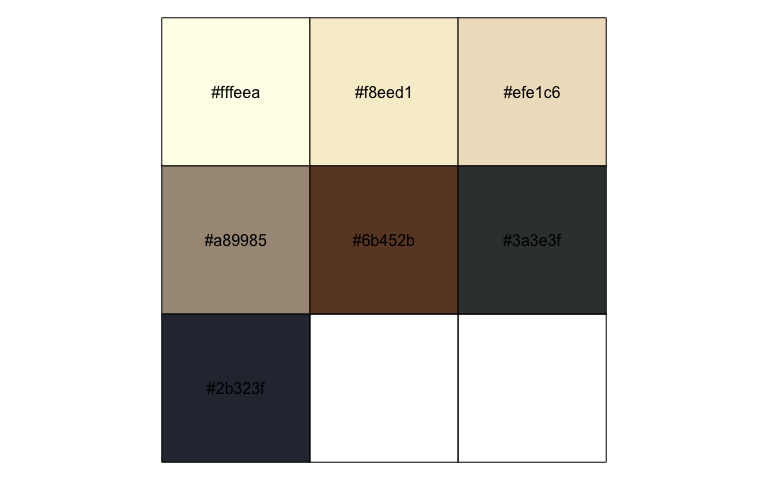

+pomological_base <- list(
+  "paper"       = "#fffeea",
+  "paper_alt"   = "#f8eed1",
+  "light_line"  = "#efe1c6",
+  "medium_line" = "#a89985",
+  "darker_line" = "#6b452b",
+  "black"       = "#3a3e3f",
+  "dark_blue"   = "#2b323f"
+)
+
+#' Pomological Color and Fill Scales
+#'
+#' Color scales based on the USDA Pomological Watercolors paintings.
+#'
+#' @references https://usdawatercolors.nal.usda.gov/pom
+#' @seealso [ggplot2::scale_colour_discrete] [ggplot2::scale_fill_discrete]
+#' @inheritDotParams ggplot2::discrete_scale
+#' @name scale_pomological
+NULL
+
+pomological_pal <- function() scales::manual_pal(pomological_palette)
+
+#' @rdname scale_pomological
+#' @export
+scale_colour_pomological <- function(...) ggplot2::discrete_scale("colour", "pomological", pomological_pal(), ...)
+
+#' @rdname scale_pomological
+#' @export
+scale_color_pomological <- scale_colour_pomological
+
+#' @rdname scale_pomological
+#' @export
+scale_fill_pomological <- function(...) ggplot2::discrete_scale('fill', 'pomological', pomological_pal(), ...)

R/theme_pomological.R

@@ -0,0 +1,119 @@
+#' Pomological Theme
+#'
+#' [ggplot2] plot theme based on the USDA Pomological Watercolors paintings.
+#'
+#' @references https://usdawatercolors.nal.usda.gov/pom
+#' @seealso [ggplot2::theme]
+#' @param base_family Base text family
+#' @param base_size Base text size
+#' @param text.color Color of all text (except axis text, see `axis.text.color`)
+#' @param plot.background.color Color of plot background, passed to `plot.background`
+#' @param panel.grid.color Color of panel grid, passed to `panel.grid`
+#' @param panel.grid.linetype Linetype of panel grid, passed to `panel.grid`
+#' @param axis.text.color Color of axis text
+#' @param axis.text.size Size of axis text
+#' @param base_theme Starting theme of plot, default is
+#'   [ggplot2::theme_minimal()]. Any elements set by `theme_pomological()` will
+#'   overwrite the `base_theme` unless the specific parameter is explicitly set
+#'   to `NULL`.
+#'
+#' @section Fonts:
+#' Complete the pomological watercolor theme with a handwriting or cursive font.
+#' The following fonts from [Google Fonts](https://fonts.google.com) work well.
+#' Visit the links below to install on your system.
+#'
+#' - [Homemade Apple](https://fonts.google.com/specimen/Homemade+Apple/)
+#' - [Amatic SC](https://fonts.google.com/specimen/Amatic+SC/)
+#' - [Mr. Bedfort](https://fonts.google.com/specimen/Mr+Bedfort/)
+#'
+#' @examples
+#' library(ggplot2)

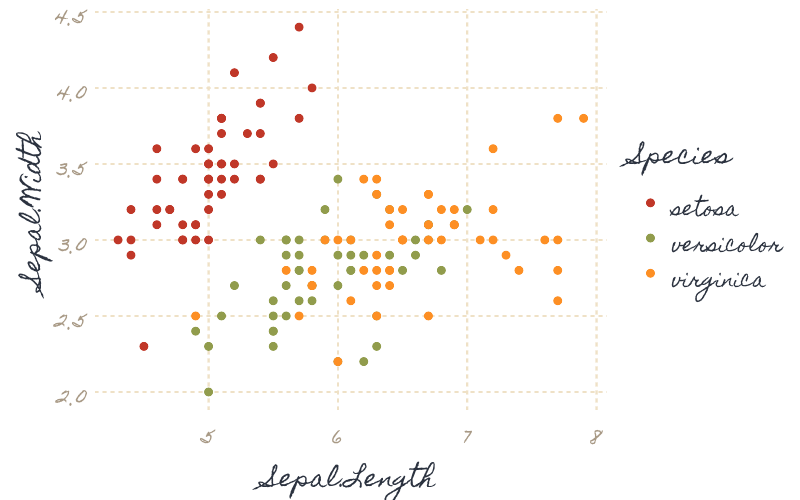

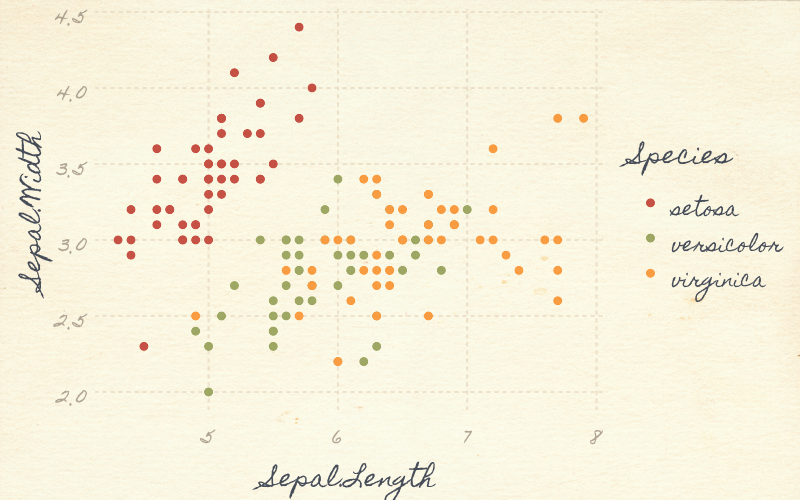

+#' basic_iris_plot <- ggplot(iris) +
+#'   aes(x = Sepal.Length, y = Sepal.Width, color = Species) +
+#'   geom_point(size = 2)
+#'
+#' # Pomological Theme
+#' basic_iris_plot + theme_pomological()
+#'
+#' # Don't change panel grid color
+#' basic_iris_plot +
+#'   theme_pomological(
+#'     panel.grid.color = NULL
+#'   )
+#'
+#' # White background
+#' basic_iris_plot +
+#'   theme_pomological_nobg()
+#'
+#' @export
+theme_pomological <- function(
+  base_family = 'Homemade Apple',
+  base_size = 16,
+  text.color = NULL,
+  plot.background.color = NULL,
+  panel.grid.color = NULL,
+  panel.grid.linetype = 'dashed',
+  axis.text.color = NULL,
+  axis.text.size = base_size * 14/16,
+  base_theme = ggplot2::theme_minimal()
+) {
+  check_font(base_family)
+
+  base_theme +
+    ggplot2::theme(
+      text = ggplot2::element_text(
+        family = base_family,
+        size = base_size,
+        colour = ifelse(hasArg(text.color), text.color, pomological_base$dark_blue)
+      ),
+      plot.background = ggplot2::element_rect(
+        fill = ifelse(hasArg(plot.background.color), plot.background.color, pomological_base$paper),
+        colour = NA
+      ),
+      panel.grid = ggplot2::element_line(
+        colour = ifelse(hasArg(panel.grid.color), panel.grid.color, pomological_base$light_line),
+        linetype = panel.grid.linetype),
+      panel.grid.major = ggplot2::element_line(
+        colour = ifelse(hasArg(panel.grid.color), panel.grid.color, pomological_base$light_line),
+        linetype = panel.grid.linetype),
+      panel.grid.minor = ggplot2::element_blank(),
+      axis.text = ggplot2::element_text(
+        colour = ifelse(hasArg(axis.text.color), axis.text.color, pomological_base$medium_line),
+        size = axis.text.size)
+    )
+}
+
+#' @describeIn theme_pomological Pomological theme with white (transparent) background
+#' @export
+theme_pomological_nobg <- function(...) {
+  dots <- list(...)
+  dots$plot.background.color <- 'transparent'
+  do.call('theme_pomological', args = dots)
+}
+
+font_urls <- data.frame(
+  name = c("Homemade Apple", "Amatic SC", "Mr. Bedfort"),
+  url  = c(
+    "https://fonts.google.com/specimen/Homemade+Apple/",
+    "https://fonts.google.com/specimen/Amatic+SC/",
+    "https://fonts.google.com/specimen/Mr+Bedfort/"
+  )
+)
+
+check_font <- function(font_name) {
+  if (!requireNamespace('extrafont', quietly = TRUE)) {
+    warning("The font \"", font_name, "\" may or may not be installed on your system.",
+            "Please install the package `extrafont` if you'd like me to be able to check for you.")
+  } else {
+    if (!font_name %in% extrafont::fonts()) {
+      if (font_name %in% font_urls$name) {
+        warning("Unable to find font '", font_name, "'. ",
+                "If recently installed, please run `extrafonts::font_import()`. ",
+                "To install, visit: ", font_urls[font_urls$name == font_name, 'url'])
+      } else {
+        warning("Unable to find font '", font_name, "'. ",
+                "If recently installed, please run `extrafonts::font_import()`. ")
+      }
+    }
+  }
+}

Readme.Rmd

@@ -11,21 +11,10 @@ editor_options:
 knitr::opts_chunk$set(echo = TRUE, fig.width=8, fig.height=5)
 ```

-## Pomological Plots
+[![lifecycle](https://img.shields.io/badge/lifecycle-experimental-orange.svg)](https://img.shields.io/badge/lifecycle-experimental-orange.svg)

-![](pom-examples.jpg)
+## Pomological Plots

--   [Pomological Plots](#pomological-plots)
--   [Color Palette](#color-palette)
--   [Setup theme and scales](#setup-theme-and-scales)
--   [Add paper background!](#add-paper-background)
--   [Demo!](#demo)
-    -   [Basic iris plot](#basic-iris-plot)
-    -   [Stacked bar chart](#stacked-bar-chart)
-    -   [Density Plot](#density-plot)
-    -   [Points and lines](#points-and-lines)
-    -   [One last plot](#one-last-plot)
--   [Appendix](#appendix)

 <!-- Links -->
 [rstudioconf]:   https://www.rstudio.com/conference/
@@ -36,65 +25,34 @@ knitr::opts_chunk$set(echo = TRUE, fig.width=8, fig.height=5)
 [t-pomological]: https://twitter.com/pomological
 [magick]:        https://cran.r-project.org/web/packages/magick/index.html

-Aron Atkins ([\@aronatkins][t-aronatkins]) gave a great talk at [rstudio::conf 2018][rstudioconf] about a subject near and dear to my heart: parameterized RMarkdown.
-And apples.
-
-In his talk, he designed a parameterized RMarkdown report that would provide the user with a customized report for their selected fruit, based on the [USDA Pomological Watercolors database][usda-pom].
-I hade never heard of the USDA watercolor -- or the it's fan club twitter account [\@pomological][t-pomological] until watching his talk.
-It's a treasure trove of thousands of watercolor images of fruits; beautiful images with intricate details and a very unique and stunning palette.
-The perfect palette for a custom ggplot2 theme.
-
-What follows is a set of functions that I plan to pull together into a simple package that will provide a custom, pomological-inspired ggplot2 theme.
+This package provides a ggplot2 theme inspired by the [USDA Pomological Watercolors collection][usda-pom] and by Aron Atkins's ([\@aronatkins][t-aronatkins]) [talk on parameterized RMarkdown][rsconf-video] at [rstudio::conf 2018][rstudioconf].

-Before reading more about `ggpomological`, you should really check out [Aron's talk][rsconf-video] or [his slides][rsconf-slides].
+![](Readme_files/pom-examples.jpg)

 ## Color Palette

-The first thing I did was browse through the [pomological watercolors collection][usda-pom], downloading images of a wide variety of fruits.
-I didn't do this in any systematic way, other than occasionally searching for a particular type of fruit, like 'grape' or 'papaya'.
+The colors for this theme were drawn from many images from the [USDA Pomological Watercolors collection][usda-pom], I chose just a few that I thought worked well together for color and fill scales

-From these images, I used an application (that I installed forever ago and is no longer around) called ColorSchemer Studio to pull out a set of colors that I felt represented the collection.
-
-I ended up with a lot of colors.
-
-![](pomological_colors.png)
+```{r}
+scales::show_col(ggpomological:::pomological_palette)
+```

-From this list, I chose just a few that worked well together.
+and a few colors for the plot background and decoration

 ```{r}
-pomological_palette <- c(
-   "#c03728" #red
-  ,"#919c4c" #green darkish
-  ,"#fd8f24" #orange brighter
-  ,"#f5c04a" #yelloww
-  ,"#e68c7c" #pink
-  ,"#828585" #light grey
-  ,"#c3c377" #green light
-  ,"#4f5157" #darker blue/grey
-  ,"#6f5438" #lighter brown
-)
-
-# Palette colors
-scales::show_col(pomological_palette)
-
-pomological_base <- list(
-   "paper"       = "#fffeea"
-  ,"paper_alt"   = "#f8eed1"
-  ,"light_line"  = "#efe1c6"
-  ,"medium_line" = "#a89985"
-  ,"darker_line" = "#6b452b"
-  ,"black"       = "#3a3e3f"
-  ,"dark_blue"   = "#2b323f"
-)
-
-# Base colors
-scales::show_col(unlist(pomological_base))
+scales::show_col(unlist(ggpomological:::pomological_base))
 ```

+I've also included a [css file](inst/pomological.css) with the complete collection of color samples.
+

 ## Setup theme and scales

-I created two theme-generating functions, `pomological_theme()` sets the plot theme to be representative of the paper and styling of the watercolors and includes a paper-colored background, and `pomological_theme_nobg()` is the same as the first, just with a transparent (or white) background.
+There are two theme-generating functions:
+
+- `theme_pomological()` sets the plot theme to be representative of the paper and styling of the watercolors and includes a paper-colored background,
+
+- and `theme_pomological_nobg()` has the same styling, just with a transparent (or white) background.

 A handwriting font is needed for the fully authentic pomological look, and I found a few from Google Fonts that fit the bill.

@@ -104,144 +62,29 @@ A handwriting font is needed for the fully authentic pomological look, and I fou

 Alternatively, use something like [calligrapher.com](https://www.calligraphr.com/) to create your own handwriting font!

-```{r pomological-theme}
-pomological_theme <- function(
-  base_family = 'Homemade Apple',
-  base_size = 16,
-  text.color = NULL,
-  plot.background.color = NULL,
-  panel.grid.color = NULL,
-  panel.grid.linetype = 'dashed',
-  axis.text.color = NULL,
-  axis.text.size = base_size * 14/16,
-  base_theme = ggplot2::theme_minimal()
-) {
-  pomological_base <- list(
-    "paper" = "#fffeea",
-    'paper_alt' = "#f8eed1",
-    'light_line' = '#efe1c6',
-    'medium_line' = "#a89985",
-    'darker_line' = "#6b452b",
-    'black' = "#3a3e3f",
-    "dark_blue" = "#2b323f"
-  )
-
-  base_theme +
-    ggplot2::theme(
-      text = element_text(
-        family = base_family,
-        size = base_size,
-        colour = ifelse(hasArg(text.color), text.color, pomological_base$dark_blue)
-      ),
-      plot.background = element_rect(
-        fill = ifelse(hasArg(plot.background.color), plot.background.color, pomological_base$paper),
-        colour = NA
-      ),
-      panel.grid = element_line(
-        colour = ifelse(hasArg(panel.grid.color), panel.grid.color, pomological_base$light_line),
-        linetype = panel.grid.linetype),
-      panel.grid.major = element_line(
-        colour = ifelse(hasArg(panel.grid.color), panel.grid.color, pomological_base$light_line),
-        linetype = panel.grid.linetype),
-      panel.grid.minor = element_blank(),
-      axis.text = element_text(
-        colour = ifelse(hasArg(axis.text.color), axis.text.color, pomological_base$medium_line),
-        size = axis.text.size)
-    )
-}
-
-pomological_theme_nobg <- function(...) {
-  dots <- list(...)
-  dots$plot.background.color <- 'transparent'
-  do.call('pomological_theme', args = dots)
-}
-```
-
-
-Here are the color scales you'll need: `scale_color_pomological` and `scale_fill_pomological`.
+For color and fill scales, **ggpomological** provides `scale_color_pomological()` and `scale_fill_pomological()`.

-
-```{r pomological-scales}
-# learned this from https://github.com/hrbrmstr/hrbrthemes/blob/13f9b59579f007b8a5cbe5c699cbe3ec5fdd28a1/R/color.r
-pomological_pal <- function() scales::manual_pal(pomological_palette)
-
-# Scale color
-scale_colour_pomological <- function(...) ggplot2::discrete_scale("colour", "pomological", pomological_pal(), ...)
-scale_color_pomological <- scale_colour_pomological
-
-# Scale fill
-scale_fill_pomological <- function(...) ggplot2::discrete_scale('fill', 'pomological', pomological_pal(), ...)
-```
-
-
-In the future, I might come back to this to
+In the future, I might revisit this package to

 1. Increase colors in discrete scale

-2. Setup a color-pairs plot. Lots of great color pairs in the extracted colors.
+2. Setup paired color scales. Lots of great color pairs in the extracted colors.

 3. Set up continuous scale colors (we'll see...)


 ## Add paper background!

-Great, but I want my plots to look even more pomological, you say?
-
-Perfect!
-This function uses the [`magick`][magick] package to add a pomological watercolor paper background and a subtle texture overlay.
-
-```{r paint_pomological}
-paint_pomological <- function(
-  pomo_gg,
-  width = 800,
-  height = 500,
-  pointsize = 16,
-  pomological_background = 'pomological_bg.png',
-  pomological_overlay = "pomological_overlay.jpg",
-  outfile = NULL,
-  ...
-) {
-  requireNamespace('magick', quietly = TRUE)
-  requireNamespace('glue', quietly = TRUE)
-  if (!file.exists(pomological_background)) {
-    warning(glue::glue("Cannot find file \"{pomological_background}\", so you can have your plot back!"))
-    return(pomo_gg)
-  }
-
-  # Paint figure
-  gg_fig <- magick::image_graph(width, height, bg = 'transparent', pointsize = pointsize, ...)
-  print(pomo_gg)
-  dev.off()
-
-  if (!is.null(pomological_overlay) && file.exists(pomological_overlay)) {
-    pomo_over <- magick::image_read(pomological_overlay)
-    pomo_over <- magick::image_resize(pomo_over, glue::glue("{width}x{height}!"))
-    gg_fig <- magick::image_composite(gg_fig, pomo_over, "blend", compose_args = "15")
-  }
-
-  # Paint background
-  pomo_bg <- magick::image_read(pomological_background)
-  pomo_bg <- magick::image_resize(pomo_bg, glue::glue("{width}x{height}!"))
-  pomo_bg <- magick::image_crop(pomo_bg, glue::glue("{width}x{height}"))
-
-  # Paint figure onto background
-  pomo_img <- magick::image_composite(pomo_bg, gg_fig)
-  if (!is.null(outfile)) {
-    # Do you want your picture framed?
-    magick::image_write(pomo_img, outfile)
-  }
-  pomo_img
-}
-```
+**ggpomological** also provides a function named `paint_pomological` that uses the [`magick`][magick] package to add a pomological watercolor paper background and a subtle texture overlay.


 ## Demo!

-We'll need dplyr and ggplot2
+We'll need dplyr and ggplot2 (loaded with **ggpomological**)

 ```{r libraries, messages=FALSE, warning=FALSE}
+library(ggpomological)
 library(dplyr)
-library(ggplot2)
 ```

 ### Basic iris plot
@@ -257,13 +100,13 @@ basic_iris_plot

 # With pomological theme
 basic_iris_plot +
-  pomological_theme() +
+  theme_pomological() +
   scale_color_pomological()


 # With transparent background
 pomological_iris <- basic_iris_plot +
-  pomological_theme_nobg() +
+  theme_pomological_nobg() +
   scale_color_pomological()
 pomological_iris

@@ -286,10 +129,10 @@ stacked_bar_plot <- ggplot(diamonds) +
   scale_x_continuous(label = scales::dollar_format()) +
   scale_fill_pomological()

-stacked_bar_plot + pomological_theme()
+stacked_bar_plot + theme_pomological()

 paint_pomological(
-  stacked_bar_plot + pomological_theme_nobg(),
+  stacked_bar_plot + theme_pomological_nobg(),
   res = 110
 ) %>%
   magick::image_write("Readme_files/figure-gfm/plot-bar-chart-painted.png")

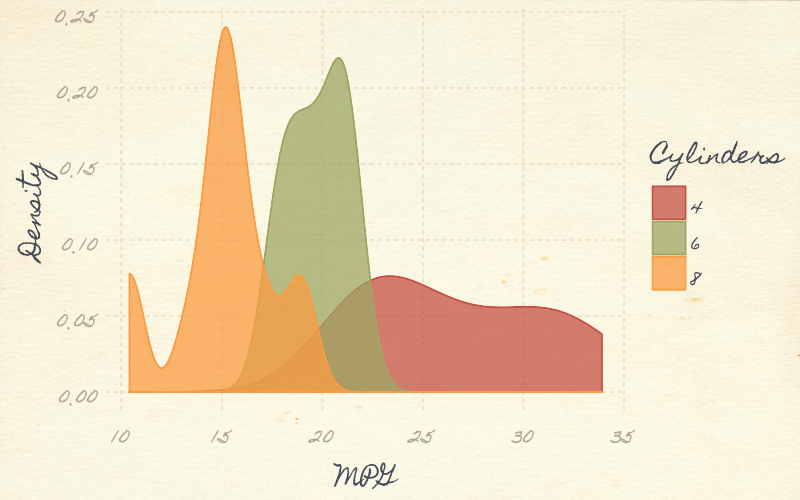

@@ -309,10 +152,10 @@ density_plot <- mtcars %>%
   scale_color_pomological() +
   scale_fill_pomological()

-density_plot + pomological_theme()
+density_plot + theme_pomological()

 paint_pomological(
-  density_plot + pomological_theme_nobg(),
+  density_plot + theme_pomological_nobg(),
   res = 110
 ) %>%
   magick::image_write("Readme_files/figure-gfm/plot-density-demo-painted.png")
@@ -330,7 +173,7 @@ big_volume_cities <- txhousing %>%
   group_by(city) %>%
   summarize(mean_volume = mean(volume, na.rm = TRUE)) %>%
   arrange(-mean_volume) %>%
-  top_n(length(pomological_palette)) %>%
+  top_n(length(ggpomological:::pomological_palette)) %>%
   pull(city)

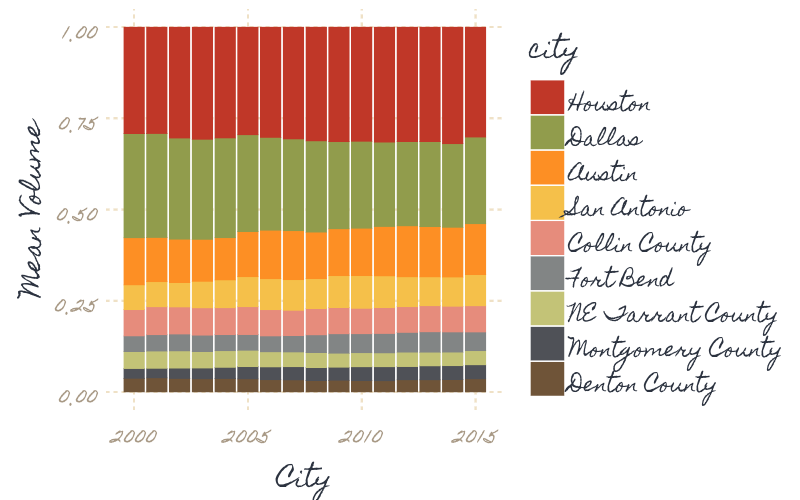

 full_bar_stack_plot <- txhousing %>%
@@ -346,10 +189,10 @@ full_bar_stack_plot <- txhousing %>%
   theme(panel.grid.minor.x = element_blank()) +
   scale_fill_pomological()

-full_bar_stack_plot + pomological_theme()
+full_bar_stack_plot + theme_pomological()

 paint_pomological(
-  full_bar_stack_plot + pomological_theme_nobg(),
+  full_bar_stack_plot + theme_pomological_nobg(),
   res = 110
 ) %>%

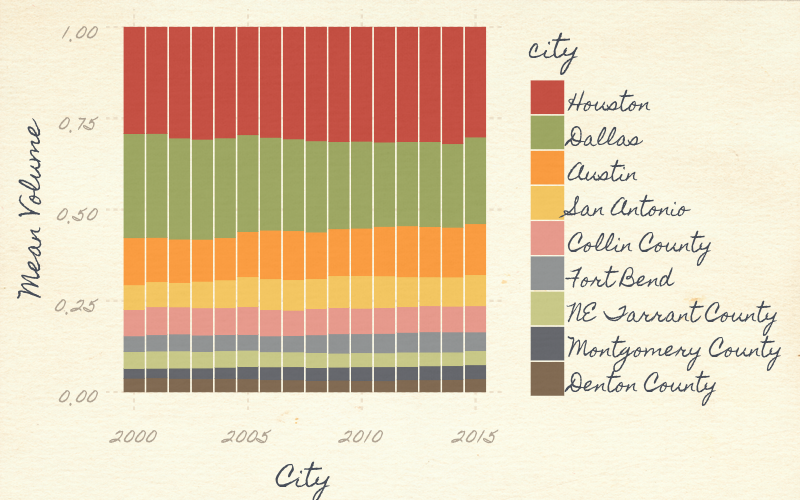

   magick::image_write("Readme_files/figure-gfm/plot-full-bar-stack-painted.png")
@@ -365,7 +208,7 @@ paint_pomological(

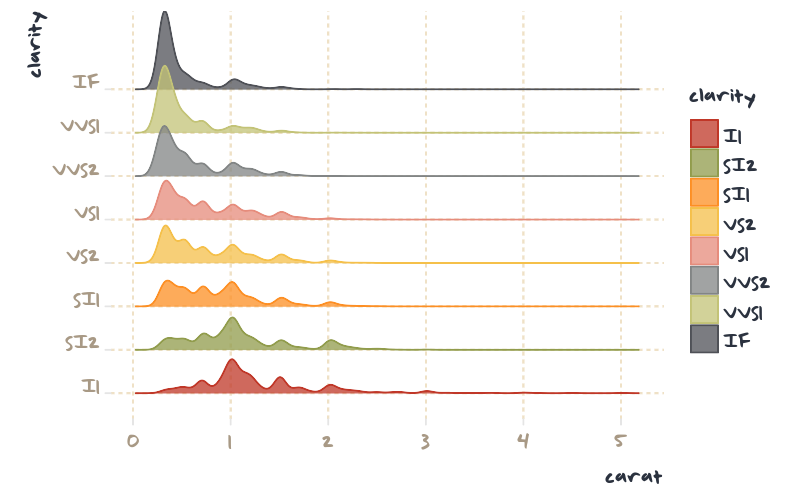

 ridges_pomological <- ggplot(diamonds) +
   aes(x = carat, y = clarity, color = clarity, fill = clarity) +
   ggridges::geom_density_ridges(alpha = 0.75) +
-  pomological_theme_nobg(
+  theme_pomological_nobg(
     base_family = 'gWriting',
     base_size = 20,
     base_theme = ggridges::theme_ridges()
@@ -378,100 +221,3 @@ paint_pomological(ridges_pomological, res = 110) %>%
 ```

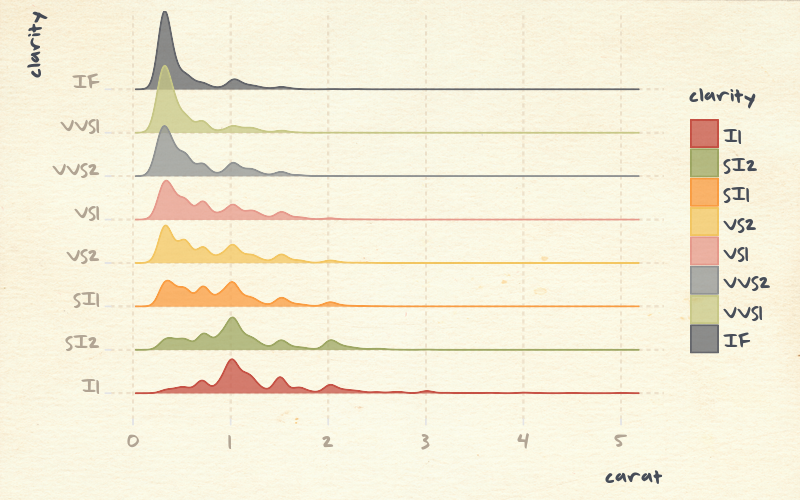

 ![](Readme_files/figure-gfm/plot-ridges-painted.png)
-
-
-
-## Appendix
-
-<details>
-<summary>Some functions I wrote while exploring colors, that may or may not work here.</summary>
-
-```{r appendix, eval=FALSE}
-# load all colors
-x <- readLines("pomological.css")
-x <- stringr::str_extract(x, "#[0-9a-f]{6}")
-x <- x[!is.na(x)]
-
-gg_color_hue <- function(n) {
-  hues = seq(15, 375, length = n + 1)
-  hcl(h = hues, l = 65, c = 100)[1:n]
-}
-
-col2hsv <- function(x) rgb2hsv(col2rgb(x))
-
-
-dist2ref_color <- function(color, ref_color) {
-  stopifnot(length(ref_color) == 1)
-  x <- col2hsv(c(color, ref_color)) %>%
-    t %>%
-    dist %>%
-    as.matrix %>%
-    {tibble('ref_color' = .[length(color) + 1, 1:length(color)])}
-  names(x) <- ref_color
-  x
-}
-
-compare_to_ggplot <- function(compare_to_ggplot) {
-  pomo_gg <- map_dfr(set_names(compare_to_ggplot), ~ as_tibble(t(col2hsv(.))), .id = "color") %>%
-    bind_cols(
-      map_dfc(gg_color_hue(set_names(length(compare_to_ggplot))), ~ dist2ref_color(compare_to_ggplot, .))
-    ) %>%
-    tidyr::gather('ggplot_color', 'dist', -color:-v) %>%
-    # group_by(color) %>%
-    # do(dist = min(.$dist), ggplot_color = filter(., dist == min(.$dist))$ggplot_color) %>%
-    # mutate(dist = map_dbl(dist, ~ .), ggplot_color = map_chr(ggplot_color, ~ .)) %>%
-    # ungroup %>%
-    mutate(ggplot_color = factor(ggplot_color, gg_color_hue(length(compare_to_ggplot)))) %>%
-    arrange(ggplot_color)
-  warning(glue::glue("Palette has {length(compare_to_ggplot)} colors"), call. = FALSE)
-  ggplot(pomo_gg) +
-    aes(x = ggplot_color, y = dist, fill = color, label = color) +
-    geom_label(color = 'white')+
-    # geom_point(shape = 15, size = 5) +
-    scale_fill_identity()
-}
-
-data_frame(
-  'color' = color_options,
-  # 'group' = sample(c('pomo', 'logical'), length(color_options), replace = TRUE),
-  'x' = pmap_chr(tidyr::crossing(letters, letters), ~paste0(..1, ..2))[1:length(color_options)],
-  'y' = 1:length(color_options)
-) %>%
-  ggplot() +
-  aes(x, y, fill = color) +
-  # geom_point(size = 8)+
-  geom_col()+
-  geom_text(aes(label = color), hjust = -0.1) +
-  scale_fill_identity() +
-  coord_flip() +
-  theme_minimal() +
-  #theme_xkcd() +
-  theme(
-    text = element_text(family = 'gWriting', size = 16),
-    plot.background = element_rect(fill = base_colors["paper_light"], color = NA),
-    panel.grid = element_line(color = "#efe1c6"),
-    axis.text = element_text(color = "#655843", size = 14)
-  )
-
-ordered_plot <- function(color_options, dichromat = FALSE) {
-  if (dichromat) {
-    dichr_type <- sample(c("deutan", "protan", "tritan"), 1)
-    message(glue::glue("color blindness: {dichr_type}"))
-    color_options <- dichromat::dichromat(color_options, dichr_type)
-  }
-  data_frame(
-    color = color_options,
-    x = 1,
-    y = 1:length(color_options)
-  ) %>%
-    ggplot() +
-    aes(x, y, fill = color, label = color) +
-    geom_tile() +
-    geom_label(color = 'white') +
-    scale_fill_identity()+
-    scale_y_continuous(breaks = 1:length(color_options), labels = 1:length(color_options))+
-    theme_minimal()
-}
-```
-
-</details>

Readme.md

@@ -3,108 +3,54 @@ Pomological Colors
 Garrick Aden-Buie
 2/4/2018

-## Pomological Plots
-
-![](pom-examples.jpg)
+<https://img.shields.io/badge/lifecycle-experimental-orange.svg>

-  - [Pomological Plots](#pomological-plots)
-  - [Color Palette](#color-palette)
-  - [Setup theme and scales](#setup-theme-and-scales)
-  - [Add paper background\!](#add-paper-background)
-  - [Demo\!](#demo)
-      - [Basic iris plot](#basic-iris-plot)
-      - [Stacked bar chart](#stacked-bar-chart)
-      - [Density Plot](#density-plot)
-      - [Points and lines](#points-and-lines)
-      - [One last plot](#one-last-plot)
-  - [Appendix](#appendix)
+## Pomological Plots

 <!-- Links -->

-Aron Atkins ([@aronatkins](https://twitter.com/aronatkins)) gave a great
-talk at [rstudio::conf 2018](https://www.rstudio.com/conference/) about
-a subject near and dear to my heart: parameterized RMarkdown. And
-apples.
-
-In his talk, he designed a parameterized RMarkdown report that would
-provide the user with a customized report for their selected fruit,
-based on the [USDA Pomological Watercolors
-database](https://usdawatercolors.nal.usda.gov/pom). I hade never heard
-of the USDA watercolor – or the it’s fan club twitter account
-[@pomological](https://twitter.com/pomological) until watching his talk.
-It’s a treasure trove of thousands of watercolor images of fruits;
-beautiful images with intricate details and a very unique and stunning
-palette. The perfect palette for a custom ggplot2 theme.
-
-What follows is a set of functions that I plan to pull together into a
-simple package that will provide a custom, pomological-inspired ggplot2
-theme.
-
-Before reading more about `ggpomological`, you should really check out
-[Aron’s talk](https://youtu.be/Ol1FjFR2IMU?t=5h21m15s) or [his
-slides](https://github.com/rstudio/rstudio-conf/tree/master/2018/Fruit_For_Thought--Aron_Atkins).
-
-## Color Palette
-
-The first thing I did was browse through the [pomological watercolors
-collection](https://usdawatercolors.nal.usda.gov/pom), downloading
-images of a wide variety of fruits. I didn’t do this in any systematic
-way, other than occasionally searching for a particular type of fruit,
-like ‘grape’ or ‘papaya’.
+This package provides a ggplot2 theme inspired by the [USDA Pomological
+Watercolors collection](https://usdawatercolors.nal.usda.gov/pom) and by
+Aron Atkins’s ([@aronatkins](https://twitter.com/aronatkins)) [talk on
+parameterized RMarkdown](https://youtu.be/Ol1FjFR2IMU?t=5h21m15s) at
+[rstudio::conf 2018](https://www.rstudio.com/conference/).

-From these images, I used an application (that I installed forever ago
-and is no longer around) called ColorSchemer Studio to pull out a set of
-colors that I felt represented the collection.
+![](Readme_files/pom-examples.jpg)

-I ended up with a lot of colors.
-
-![](pomological_colors.png)
+## Color Palette

-From this list, I chose just a few that worked well together.
+The colors for this theme were drawn from many images from the [USDA
+Pomological Watercolors
+collection](https://usdawatercolors.nal.usda.gov/pom), I chose just a
+few that I thought worked well together for color and fill scales

 ``` r
-pomological_palette <- c(
-   "#c03728" #red
-  ,"#919c4c" #green darkish
-  ,"#fd8f24" #orange brighter
-  ,"#f5c04a" #yelloww
-  ,"#e68c7c" #pink
-  ,"#828585" #light grey
-  ,"#c3c377" #green light
-  ,"#4f5157" #darker blue/grey
-  ,"#6f5438" #lighter brown
-)
-
-# Palette colors
-scales::show_col(pomological_palette)
+scales::show_col(ggpomological:::pomological_palette)
 ```

 ![](Readme_files/figure-gfm/unnamed-chunk-1-1.png)<!-- -->

+and a few colors for the plot background and decoration
+
 ``` r
-pomological_base <- list(
-   "paper"       = "#fffeea"
-  ,"paper_alt"   = "#f8eed1"
-  ,"light_line"  = "#efe1c6"
-  ,"medium_line" = "#a89985"
-  ,"darker_line" = "#6b452b"
-  ,"black"       = "#3a3e3f"
-  ,"dark_blue"   = "#2b323f"
-)
-
-# Base colors
-scales::show_col(unlist(pomological_base))
+scales::show_col(unlist(ggpomological:::pomological_base))
 ```

-![](Readme_files/figure-gfm/unnamed-chunk-1-2.png)<!-- -->
+![](Readme_files/figure-gfm/unnamed-chunk-2-1.png)<!-- -->
+
+I’ve also included a [css file](inst/pomological.css) with the complete
+collection of color samples.

 ## Setup theme and scales

-I created two theme-generating functions, `pomological_theme()` sets the
-plot theme to be representative of the paper and styling of the
-watercolors and includes a paper-colored background, and
-`pomological_theme_nobg()` is the same as the first, just with a
-transparent (or white) background.
+There are two theme-generating functions:
+
+  - `theme_pomological()` sets the plot theme to be representative of
+    the paper and styling of the watercolors and includes a
+    paper-colored background,
+
+  - and `theme_pomological_nobg()` has the same styling, just with a
+    transparent (or white) background.

 A handwriting font is needed for the fully authentic pomological look,
 and I found a few from Google Fonts that fit the bill.
@@ -117,139 +63,35 @@ Alternatively, use something like
 [calligrapher.com](https://www.calligraphr.com/) to create your own
 handwriting font\!

-``` r
-pomological_theme <- function(
-  base_family = 'Homemade Apple',
-  base_size = 16,
-  text.color = NULL,
-  plot.background.color = NULL,
-  panel.grid.color = NULL,
-  panel.grid.linetype = 'dashed',
-  axis.text.color = NULL,
-  axis.text.size = base_size * 14/16,
-  base_theme = ggplot2::theme_minimal()
-) {
-  pomological_base <- list(
-    "paper" = "#fffeea",
-    'paper_alt' = "#f8eed1",
-    'light_line' = '#efe1c6',
-    'medium_line' = "#a89985",
-    'darker_line' = "#6b452b",
-    'black' = "#3a3e3f",
-    "dark_blue" = "#2b323f"
-  )
-
-  base_theme +
-    ggplot2::theme(
-      text = element_text(
-        family = base_family,
-        size = base_size,
-        colour = ifelse(hasArg(text.color), text.color, pomological_base$dark_blue)
-      ),
-      plot.background = element_rect(
-        fill = ifelse(hasArg(plot.background.color), plot.background.color, pomological_base$paper),
-        colour = NA
-      ),
-      panel.grid = element_line(
-        colour = ifelse(hasArg(panel.grid.color), panel.grid.color, pomological_base$light_line),
-        linetype = panel.grid.linetype),
-      panel.grid.major = element_line(
-        colour = ifelse(hasArg(panel.grid.color), panel.grid.color, pomological_base$light_line),
-        linetype = panel.grid.linetype),
-      panel.grid.minor = element_blank(),
-      axis.text = element_text(
-        colour = ifelse(hasArg(axis.text.color), axis.text.color, pomological_base$medium_line),
-        size = axis.text.size)
-    )
-}
-
-pomological_theme_nobg <- function(...) {
-  dots <- list(...)
-  dots$plot.background.color <- 'transparent'
-  do.call('pomological_theme', args = dots)
-}
-```
-
-Here are the color scales you’ll need: `scale_color_pomological` and
-`scale_fill_pomological`.
-
-``` r
-# learned this from https://github.com/hrbrmstr/hrbrthemes/blob/13f9b59579f007b8a5cbe5c699cbe3ec5fdd28a1/R/color.r
-pomological_pal <- function() scales::manual_pal(pomological_palette)
+For color and fill scales, **ggpomological** provides
+`scale_color_pomological()` and `scale_fill_pomological()`.

-# Scale color
-scale_colour_pomological <- function(...) ggplot2::discrete_scale("colour", "pomological", pomological_pal(), ...)
-scale_color_pomological <- scale_colour_pomological
-
-# Scale fill
-scale_fill_pomological <- function(...) ggplot2::discrete_scale('fill', 'pomological', pomological_pal(), ...)
-```
-
-In the future, I might come back to this to
+In the future, I might revisit this package to

 1.  Increase colors in discrete scale

-2.  Setup a color-pairs plot. Lots of great color pairs in the extracted
-    colors.
+2.  Setup paired color scales. Lots of great color pairs in the
+    extracted colors.

 3.  Set up continuous scale colors (we’ll see…)

 ## Add paper background\!

-Great, but I want my plots to look even more pomological, you say?
-
-Perfect\! This function uses the
+**ggpomological** also provides a function named `paint_pomological`
+that uses the
 [`magick`](https://cran.r-project.org/web/packages/magick/index.html)
 package to add a pomological watercolor paper background and a subtle
 texture overlay.

+## Demo\!
+
+We’ll need dplyr and ggplot2 (loaded with **ggpomological**)
+
 ``` r
-paint_pomological <- function(
-  pomo_gg,
-  width = 800,
-  height = 500,
-  pointsize = 16,
-  pomological_background = 'pomological_bg.png',
-  pomological_overlay = "pomological_overlay.jpg",
-  outfile = NULL,
-  ...
-) {
-  requireNamespace('magick', quietly = TRUE)
-  requireNamespace('glue', quietly = TRUE)
-  if (!file.exists(pomological_background)) {
-    warning(glue::glue("Cannot find file \"{pomological_background}\", so you can have your plot back!"))
-    return(pomo_gg)
-  }
-
-  # Paint figure
-  gg_fig <- magick::image_graph(width, height, bg = 'transparent', pointsize = pointsize, ...)
-  print(pomo_gg)
-  dev.off()
-
-  if (!is.null(pomological_overlay) && file.exists(pomological_overlay)) {
-    pomo_over <- magick::image_read(pomological_overlay)
-    pomo_over <- magick::image_resize(pomo_over, glue::glue("{width}x{height}!"))
-    gg_fig <- magick::image_composite(gg_fig, pomo_over, "blend", compose_args = "15")
-  }
-
-  # Paint background
-  pomo_bg <- magick::image_read(pomological_background)
-  pomo_bg <- magick::image_resize(pomo_bg, glue::glue("{width}x{height}!"))
-  pomo_bg <- magick::image_crop(pomo_bg, glue::glue("{width}x{height}"))
-
-  # Paint figure onto background
-  pomo_img <- magick::image_composite(pomo_bg, gg_fig)
-  if (!is.null(outfile)) {
-    # Do you want your picture framed?
-    magick::image_write(pomo_img, outfile)
-  }
-  pomo_img
-}
+library(ggpomological)
 ```

-## Demo\!
-
-We’ll need dplyr and ggplot2
+    ## Loading required package: ggplot2

 ``` r
 library(dplyr)
@@ -266,10 +108,6 @@ library(dplyr)
     ##
     ##     intersect, setdiff, setequal, union

-``` r
-library(ggplot2)
-```
-
 ### Basic iris plot

 ``` r
@@ -287,7 +125,7 @@ basic_iris_plot
 ``` r
 # With pomological theme
 basic_iris_plot +
-  pomological_theme() +
+  theme_pomological() +
   scale_color_pomological()
 ```

@@ -296,7 +134,7 @@ basic_iris_plot +
 ``` r
 # With transparent background
 pomological_iris <- basic_iris_plot +
-  pomological_theme_nobg() +
+  theme_pomological_nobg() +
   scale_color_pomological()
 pomological_iris
 ```
@@ -309,6 +147,8 @@ paint_pomological(pomological_iris, res = 110) %>%
   magick::image_write("Readme_files/figure-gfm/plot-demo-painted.png")
 ```

+    ## Warning: Cannot find file ""
+
 ![](Readme_files/figure-gfm/plot-demo-painted.png)

 ### Stacked bar chart
@@ -322,19 +162,21 @@ stacked_bar_plot <- ggplot(diamonds) +
   scale_x_continuous(label = scales::dollar_format()) +
   scale_fill_pomological()

-stacked_bar_plot + pomological_theme()
+stacked_bar_plot + theme_pomological()
 ```

 ![](Readme_files/figure-gfm/plot-bar-chart-1.png)<!-- -->

 ``` r
 paint_pomological(
-  stacked_bar_plot + pomological_theme_nobg(),
+  stacked_bar_plot + theme_pomological_nobg(),
   res = 110
 ) %>%
   magick::image_write("Readme_files/figure-gfm/plot-bar-chart-painted.png")
 ```

+    ## Warning: Cannot find file ""
+
 ![](Readme_files/figure-gfm/plot-bar-chart-painted.png)

 ### Density Plot
@@ -349,19 +191,21 @@ density_plot <- mtcars %>%
   scale_color_pomological() +
   scale_fill_pomological()

-density_plot + pomological_theme()
+density_plot + theme_pomological()
 ```

 ![](Readme_files/figure-gfm/plot-density-1.png)<!-- -->

 ``` r
 paint_pomological(
-  density_plot + pomological_theme_nobg(),
+  density_plot + theme_pomological_nobg(),
   res = 110
 ) %>%
   magick::image_write("Readme_files/figure-gfm/plot-density-demo-painted.png")
 ```

+    ## Warning: Cannot find file ""
+
 ![](Readme_files/figure-gfm/plot-density-demo-painted.png)

 ### Points and lines
@@ -373,7 +217,7 @@ big_volume_cities <- txhousing %>%
   group_by(city) %>%
   summarize(mean_volume = mean(volume, na.rm = TRUE)) %>%
   arrange(-mean_volume) %>%
-  top_n(length(pomological_palette)) %>%
+  top_n(length(ggpomological:::pomological_palette)) %>%
   pull(city)
 ```

@@ -393,19 +237,21 @@ full_bar_stack_plot <- txhousing %>%
   theme(panel.grid.minor.x = element_blank()) +
   scale_fill_pomological()

-full_bar_stack_plot + pomological_theme()
+full_bar_stack_plot + theme_pomological()
 ```

 ![](Readme_files/figure-gfm/plot-full-bar-stack-1.png)<!-- -->

 ``` r
 paint_pomological(
-  full_bar_stack_plot + pomological_theme_nobg(),
+  full_bar_stack_plot + theme_pomological_nobg(),
   res = 110
 ) %>%
   magick::image_write("Readme_files/figure-gfm/plot-full-bar-stack-painted.png")
 ```

+    ## Warning: Cannot find file ""
+
 ![](Readme_files/figure-gfm/plot-full-bar-stack-painted.png)

 ### One last plot
@@ -416,7 +262,7 @@ paint_pomological(
 ridges_pomological <- ggplot(diamonds) +
   aes(x = carat, y = clarity, color = clarity, fill = clarity) +
   ggridges::geom_density_ridges(alpha = 0.75) +
-  pomological_theme_nobg(
+  theme_pomological_nobg(
     base_family = 'gWriting',
     base_size = 20,
     base_theme = ggridges::theme_ridges()
@@ -428,103 +274,8 @@ paint_pomological(ridges_pomological, res = 110) %>%
   magick::image_write("Readme_files/figure-gfm/plot-ridges-painted.png")
 ```

+    ## Warning: Cannot find file ""
+
     ## Picking joint bandwidth of 0.057

 ![](Readme_files/figure-gfm/plot-ridges-painted.png)
-
-## Appendix
-
-<details>
-
-<summary>Some functions I wrote while exploring colors, that may or may
-not work here.</summary>
-
-``` r
-# load all colors
-x <- readLines("pomological.css")
-x <- stringr::str_extract(x, "#[0-9a-f]{6}")
-x <- x[!is.na(x)]
-
-gg_color_hue <- function(n) {
-  hues = seq(15, 375, length = n + 1)
-  hcl(h = hues, l = 65, c = 100)[1:n]
-}
-
-col2hsv <- function(x) rgb2hsv(col2rgb(x))
-
-
-dist2ref_color <- function(color, ref_color) {
-  stopifnot(length(ref_color) == 1)
-  x <- col2hsv(c(color, ref_color)) %>%
-    t %>%
-    dist %>%
-    as.matrix %>%
-    {tibble('ref_color' = .[length(color) + 1, 1:length(color)])}
-  names(x) <- ref_color
-  x
-}
-
-compare_to_ggplot <- function(compare_to_ggplot) {
-  pomo_gg <- map_dfr(set_names(compare_to_ggplot), ~ as_tibble(t(col2hsv(.))), .id = "color") %>%
-    bind_cols(
-      map_dfc(gg_color_hue(set_names(length(compare_to_ggplot))), ~ dist2ref_color(compare_to_ggplot, .))
-    ) %>%
-    tidyr::gather('ggplot_color', 'dist', -color:-v) %>%
-    # group_by(color) %>%
-    # do(dist = min(.$dist), ggplot_color = filter(., dist == min(.$dist))$ggplot_color) %>%
-    # mutate(dist = map_dbl(dist, ~ .), ggplot_color = map_chr(ggplot_color, ~ .)) %>%
-    # ungroup %>%
-    mutate(ggplot_color = factor(ggplot_color, gg_color_hue(length(compare_to_ggplot)))) %>%
-    arrange(ggplot_color)
-  warning(glue::glue("Palette has {length(compare_to_ggplot)} colors"), call. = FALSE)
-  ggplot(pomo_gg) +
-    aes(x = ggplot_color, y = dist, fill = color, label = color) +
-    geom_label(color = 'white')+
-    # geom_point(shape = 15, size = 5) +
-    scale_fill_identity()
-}
-
-data_frame(
-  'color' = color_options,
-  # 'group' = sample(c('pomo', 'logical'), length(color_options), replace = TRUE),
-  'x' = pmap_chr(tidyr::crossing(letters, letters), ~paste0(..1, ..2))[1:length(color_options)],
-  'y' = 1:length(color_options)
-) %>%
-  ggplot() +
-  aes(x, y, fill = color) +
-  # geom_point(size = 8)+
-  geom_col()+
-  geom_text(aes(label = color), hjust = -0.1) +
-  scale_fill_identity() +
-  coord_flip() +
-  theme_minimal() +
-  #theme_xkcd() +
-  theme(
-    text = element_text(family = 'gWriting', size = 16),
-    plot.background = element_rect(fill = base_colors["paper_light"], color = NA),
-    panel.grid = element_line(color = "#efe1c6"),
-    axis.text = element_text(color = "#655843", size = 14)
-  )
-
-ordered_plot <- function(color_options, dichromat = FALSE) {
-  if (dichromat) {
-    dichr_type <- sample(c("deutan", "protan", "tritan"), 1)
-    message(glue::glue("color blindness: {dichr_type}"))
-    color_options <- dichromat::dichromat(color_options, dichr_type)
-  }
-  data_frame(
-    color = color_options,
-    x = 1,
-    y = 1:length(color_options)
-  ) %>%
-    ggplot() +
-    aes(x, y, fill = color, label = color) +
-    geom_tile() +
-    geom_label(color = 'white') +
-    scale_fill_identity()+
-    scale_y_continuous(breaks = 1:length(color_options), labels = 1:length(color_options))+
-    theme_minimal()
-}
-```
-
-</details>

man/ggpomological-package.Rd

@@ -0,0 +1,26 @@
+% Generated by roxygen2: do not edit by hand
+% Please edit documentation in R/ggpomological-package.R
+\docType{package}
+\name{ggpomological-package}
+\alias{ggpomological}
+\alias{ggpomological-package}
+\title{A Pomological ggplot2 Theme}
+\description{
+This package provides a ggplot2 theme inspired by the
+\href{https://usdawatercolors.nal.usda.gov/pom}{USDA Pomological Watercolors collection}
+and by Aron Atkins's (\href{https://twitter.com/aronatkins]}{@aronatkins})
+\href{https://github.com/rstudio/rstudio-conf/tree/master/2018/Fruit_For_Thought--Aron_Atkins}{talk on parameterized RMarkdown}
+at \href{https://www.rstudio.com/conference/}{rstudio::conf 2018}.
+}
+\seealso{
+Useful links:
+\itemize{
+  \item \url{https://github.com/gadenbuie/ggpomological}
+  \item Report bugs at \url{https://github.com/gadenbuie/ggpomological/issues}
+}
+
+}
+\author{
+\strong{Maintainer}: Garrick Aden-Buie \email{g.adenbuie@gmail.com}
+
+}

man/paint_pomological.Rd

@@ -0,0 +1,44 @@
+% Generated by roxygen2: do not edit by hand
+% Please edit documentation in R/paint_pomological.R
+\name{paint_pomological}
+\alias{paint_pomological}
+\title{Paint a ggpomological watercolor}
+\usage{
+paint_pomological(pomo_gg, width = 800, height = 500, pointsize = 16,
+  outfile = NULL, pomological_background = pomological_images("background"),
+  pomological_overlay = pomological_images("overlay"), ...)
+}
+\arguments{
+\item{pomo_gg}{A pomologically styled ggplot2 object. See \code{\link[=theme_pomological]{theme_pomological()}}}
+
+\item{width}{Width of output image in pixels}
+
+\item{height}{Height of output image in pixels}
+
+\item{pointsize}{Text size for plot text}
+
+\item{outfile}{Optional name for output file if you'd like to save the image}
+
+\item{pomological_background}{Paper image, defaults to paper texture provided
+by ggpomological.}
+
+\item{pomological_overlay}{Overlay texture. Set to \code{NULL} for no texture.}
+
+\item{...}{Arguments passed on to \code{magick::image_graph}
+\describe{
+  \item{res}{resolution in pixels}
+  \item{clip}{enable clipping in the device. Because clipping can slow things down
+a lot, you can disable it if you don't need it.}
+  \item{antialias}{TRUE/FALSE: enables anti-aliasing for text and strokes}
+}}
+}
+\description{
+Uses \link{magick} to paint a pomological watercolor. (Paints your plot onto a
+pomological watercolor style paper, with texture overlay.)
+}
+\references{
+https://usdawatercolors.nal.usda.gov/pom
+}
+\seealso{
+\link{theme_pomological}
+}

man/scale_pomological.Rd

@@ -0,0 +1,78 @@
+% Generated by roxygen2: do not edit by hand
+% Please edit documentation in R/scale_pomological.R
+\name{scale_pomological}
+\alias{scale_pomological}
+\alias{scale_colour_pomological}
+\alias{scale_color_pomological}
+\alias{scale_fill_pomological}
+\title{Pomological Color and Fill Scales}
+\usage{
+scale_colour_pomological(...)
+
+scale_color_pomological(...)
+
+scale_fill_pomological(...)
+}
+\arguments{
+\item{...}{Arguments passed on to \code{ggplot2::discrete_scale}
+\describe{
+  \item{aesthetics}{The names of the aesthetics that this scale works with}
+  \item{scale_name}{The name of the scale}
+  \item{palette}{A palette function that when called with a single integer
+argument (the number of levels in the scale) returns the values that
+they should take}
+  \item{name}{The name of the scale. Used as axis or legend title. If
+\code{waiver()}, the default, the name of the scale is taken from the first
+mapping used for that aesthetic. If \code{NULL}, the legend title will be
+omitted.}
+  \item{breaks}{One of:
+\itemize{
+\item \code{NULL} for no breaks
+\item \code{waiver()} for the default breaks computed by the
+transformation object
+\item A character vector of breaks
+\item A function that takes the limits as input and returns breaks
+as output
+}}
+  \item{labels}{One of:
+\itemize{
+\item \code{NULL} for no labels
+\item \code{waiver()} for the default labels computed by the
+transformation object
+\item A character vector giving labels (must be same length as \code{breaks})
+\item A function that takes the breaks as input and returns labels
+as output
+}}
+  \item{limits}{A character vector that defines possible values of the scale
+and their order.}
+  \item{expand}{Vector of range expansion constants used to add some
+padding around the data, to ensure that they are placed some distance
+away from the axes. Use the convenience function \code{\link[=expand_scale]{expand_scale()}}
+to generate the values for the \code{expand} argument. The defaults are to
+expand the scale by 5\% on each side for continuous variables, and by
+0.6 units on each side for discrete variables.}
+  \item{na.translate}{Unlike continuous scales, discrete scales can easily show
+missing values, and do so by default. If you want to remove missing values
+from a discrete scale, specify \code{na.translate = FALSE}.}
+  \item{na.value}{If \code{na.translate = TRUE}, what value aesthetic
+value should missing be displayed as? Does not apply to position scales
+where \code{NA} is always placed at the far right.}
+  \item{drop}{Should unused factor levels be omitted from the scale?
+The default, \code{TRUE}, uses the levels that appear in the data;
+\code{FALSE} uses all the levels in the factor.}
+  \item{guide}{A function used to create a guide or its name. See
+\code{\link[=guides]{guides()}} for more info.}
+  \item{position}{The position of the axis. "left" or "right" for vertical
+scales, "top" or "bottom" for horizontal scales}
+  \item{super}{The super class to use for the constructed scale}
+}}
+}
+\description{
+Color scales based on the USDA Pomological Watercolors paintings.
+}
+\references{
+https://usdawatercolors.nal.usda.gov/pom
+}
+\seealso{
+\link[ggplot2:scale_colour_discrete]{ggplot2::scale_colour_discrete} \link[ggplot2:scale_fill_discrete]{ggplot2::scale_fill_discrete}
+}

man/theme_pomological.Rd

@@ -0,0 +1,83 @@
+% Generated by roxygen2: do not edit by hand
+% Please edit documentation in R/theme_pomological.R
+\name{theme_pomological}
+\alias{theme_pomological}
+\alias{theme_pomological_nobg}
+\title{Pomological Theme}
+\usage{
+theme_pomological(base_family = "Homemade Apple", base_size = 16,
+  text.color = NULL, plot.background.color = NULL,
+  panel.grid.color = NULL, panel.grid.linetype = "dashed",
+  axis.text.color = NULL, axis.text.size = base_size * 14/16,
+  base_theme = ggplot2::theme_minimal())
+
+theme_pomological_nobg(...)
+}
+\arguments{
+\item{base_family}{Base text family}
+
+\item{base_size}{Base text size}
+
+\item{text.color}{Color of all text (except axis text, see \code{axis.text.color})}
+
+\item{plot.background.color}{Color of plot background, passed to \code{plot.background}}
+
+\item{panel.grid.color}{Color of panel grid, passed to \code{panel.grid}}
+
+\item{panel.grid.linetype}{Linetype of panel grid, passed to \code{panel.grid}}
+
+\item{axis.text.color}{Color of axis text}
+
+\item{axis.text.size}{Size of axis text}
+
+\item{base_theme}{Starting theme of plot, default is
+\code{\link[ggplot2:theme_minimal]{ggplot2::theme_minimal()}}. Any elements set by \code{theme_pomological()} will
+overwrite the \code{base_theme} unless the specific parameter is explicitly set
+to \code{NULL}.}
+}
+\description{
+\link{ggplot2} plot theme based on the USDA Pomological Watercolors paintings.
+}
+\section{Functions}{
+\itemize{
+\item \code{theme_pomological_nobg}: Pomological theme with white (transparent) background
+}}
+
+\section{Fonts}{
+
+Complete the pomological watercolor theme with a handwriting or cursive font.
+The following fonts from \href{https://fonts.google.com}{Google Fonts} work well.
+Visit the links below to install on your system.
+\itemize{
+\item \href{https://fonts.google.com/specimen/Homemade+Apple/}{Homemade Apple}
+\item \href{https://fonts.google.com/specimen/Amatic+SC/}{Amatic SC}
+\item \href{https://fonts.google.com/specimen/Mr+Bedfort/}{Mr. Bedfort}
+}
+}
+
+\examples{
+library(ggplot2)
+basic_iris_plot <- ggplot(iris) +
+  aes(x = Sepal.Length, y = Sepal.Width, color = Species) +
+  geom_point(size = 2)
+
+# Pomological Theme
+basic_iris_plot + theme_pomological()
+
+# Don't change panel grid color
+basic_iris_plot +
+  theme_pomological(
+    panel.grid.color = NULL
+  )
+
+# White background
+basic_iris_plot +
+  theme_pomological_nobg()
+
+}
+\references{
+https://usdawatercolors.nal.usda.gov/pom
+}
+\seealso{
+\link[ggplot2:theme]{ggplot2::theme}
+}
