# Tidy Animated Verbs

Garrick Aden-Buie -- [&commat;grrrck](https://twitter.com/grrrck) -- [garrickadenbuie.com](https://www.garrickadenbuie.com). Set operations contributed by [Tyler Grant Smith](https://github.com/TylerGrantSmith).

[![Binder](http://mybinder.org/badge.svg)](https://mybinder.org/v2/gh/gadenbuie/tidy-animated-verbs/master?urlpath=rstudio)
[![CC0](https://img.shields.io/badge/license_(images)_-CC0-green.svg)](https://creativecommons.org/publicdomain/zero/1.0/)
[![MIT](https://img.shields.io/badge/license_(code)_-MIT-green.svg)](https://opensource.org/licenses/MIT)

- [**Mutating Joins**](#mutating-joins) — [`inner_join()`](#inner-join), [`left_join()`](#left-join),
  [`right_join()`](#right-join), [`full_join()`](#full-join)

- [**Filtering Joins**](#filtering-joins) — [`semi_join()`](#semi-join), [`anti_join()`](#anti-join)

- [**Set Operations**](#set-operations) — [`union()`](#union), [`union_all()`](#union-all), [`intersect()`](#intersect), [`setdiff()`](#setdiff)

- [**Tidy Data**](#tidy-data) — [`spread()` and `gather()`](#spread-and-gather)

- Learn more about
    - [Using the animations and images](#usage)
    - [Relational Data](#relational-data)
    - [gganimate](#gganimate)

## Background

### Usage

Please feel free to use these images for teaching or learning about action verbs from the [tidyverse](https://tidyverse.org).
You can directly download the [original animations](images/) or static images in [svg](images/static/svg/) or [png](images/static/png/) formats, or you can use the [scripts](R/) to recreate the images locally.

Currently, the animations cover the [dplyr two-table verbs][dplyr-two-table] and I'd like to expand the animations to include more verbs from the tidyverse.
[Suggestions are welcome!](https://github.com/gadenbuie/tidy-animated-verbs/issues)

### Relational Data

The [Relational Data](http://r4ds.had.co.nz/relation-data.html) chapter of the
[R for Data Science](http://r4ds.had.co.nz/) book by Garrett Grolemund and Hadley Wickham
is an excellent resource for learning more about relational data.

The [dplyr two-table verbs vignette][dplyr-two-table]
and Jenny Bryan's [Cheatsheet for dplyr join functions](http://stat545.com/bit001_dplyr-cheatsheet.html)
are also great resources.

### gganimate

The animations were made possible by the newly re-written [gganimate] package by
[Thomas Lin Pedersen](https://github.com/thomasp85)
(original by [Dave Robinson](https://github.com/dgrtwo)).
The [package readme][gganimate] provides an excellent (and quick) introduction to gganimte.

## Mutating Joins

```{r intial-dfs}
source("R/00_base_join.R")
df_names <- data_frame(
  .x = c(1.5, 4.5), .y = 0.25,
  value = c("x", "y"),
  size = 12,
  color = "black"
)

g <- plot_data(initial_join_dfs) +
  geom_text(data = df_names, family = "Fira Mono", size = 24)

save_static_plot(g, "original-dfs")
```

<img src="images/static/png/original-dfs.png" width="480px" />

```{r echo=TRUE}
x
y
```

### Inner Join

> All rows from `x` where there are matching values in `y`, and all columns from `x` and `y`.

```{r inner-join}
source("R/inner_join.R")
```

![](images/inner-join.gif)

```{r echo=TRUE}
inner_join(x, y, by = "id")
```

### Left Join

> All rows from `x`, and all columns from `x` and `y`. Rows in `x` with no match in `y` will have `NA` values in the new columns.

```{r left-join}
source("R/left_join.R")
```

![](images/left-join.gif)

```{r echo=TRUE}
left_join(x, y, by = "id")
```

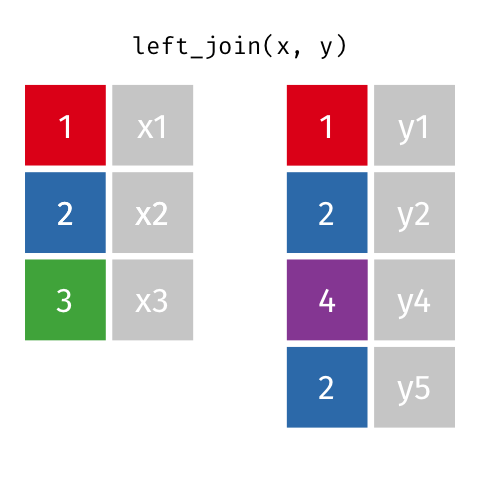

### Left Join (Extra Rows in y)

> ... If there are multiple matches between `x` and `y`, all combinations of the matches are returned.

```{r left-join-extra}
source("R/left_join_extra.R")
```

![](images/left-join-extra.gif)

```{r echo=TRUE}
y_extra # has multiple rows with the key from `x`
left_join(x, y_extra, by = "id")
```

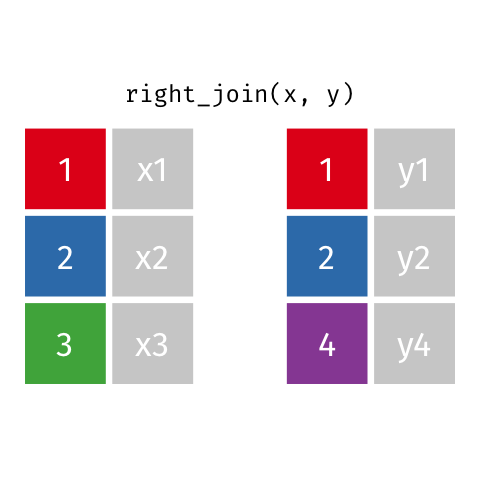

### Right Join

> All rows from y, and all columns from `x` and `y`. Rows in `y` with no match in `x` will have `NA` values in the new columns.

```{r right-join}
source("R/right_join.R")
```

![](images/right-join.gif)

```{r echo=TRUE}
right_join(x, y, by = "id")
```

### Full Join

> All rows and all columns from both `x` and `y`. Where there are not matching values, returns `NA` for the one missing.

```{r full-join}
source("R/full_join.R")
```

![](images/full-join.gif)

```{r echo=TRUE}
full_join(x, y, by = "id")
```

## Filtering Joins

### Semi Join

> All rows from `x` where there are matching values in `y`, keeping just columns from `x`.

```{r semi-join}
source("R/semi_join.R")
```

![](images/semi-join.gif)

```{r echo=TRUE}
semi_join(x, y, by = "id")
```

### Anti Join

> All rows from `x` where there are not matching values in `y`, keeping just columns from `x`.

```{r anti-join}
source("R/anti_join.R")
```

![](images/anti-join.gif)

```{r echo=TRUE}
anti_join(x, y, by = "id")
```

## Set Operations

```{r intial-dfs-so}
source("R/00_base_set.R")
df_names <- data_frame(
  .x = c(2.5, 5.5), .y = 0.25,
  value = c("x", "y"),
  size = 12,
  color = "black"
)

g <- plot_data_set(initial_set_dfs, "", NULL, NULL) +
  geom_text(data = df_names, family = "Fira Mono", size = 24)

save_static_plot(g, "original-dfs-set-ops")
```

```{r remove-set-ops-ids}
x <- x %>% select(-id)
y <- y %>% select(-id)
```

<img src="images/static/png/original-dfs-set-ops.png" width="480px" />

```{r echo=TRUE}
x
y
```

### Union

> All unique rows from `x` and `y`.

```{r union}
source("R/union.R")
<<remove-set-ops-ids>>
```

![](images/union.gif)

```{r echo=TRUE}
union(x, y)
```

![](images/union-rev.gif)

```{r echo=TRUE}
union(y, x)
```

### Union All

> All rows from `x` and `y`, keeping duplicates.

```{r union-all}
source("R/union_all.R")
<<remove-set-ops-ids>>
```

![](images/union-all.gif)


```{r echo=TRUE}
union_all(x, y)
```

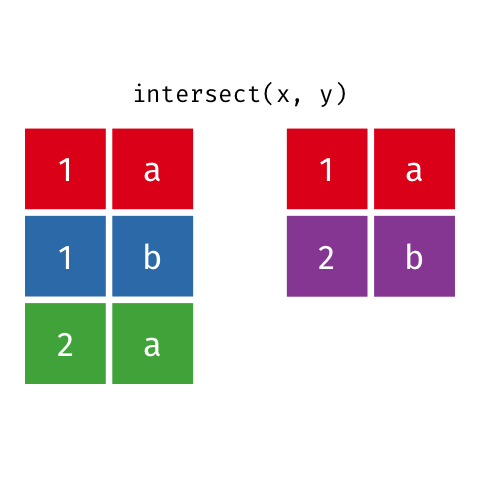

### Intersection

> Common rows in both `x` and `y`, keeping just unique rows.

```{r intersect}
source("R/intersect.R")
<<remove-set-ops-ids>>
```

![](images/intersect.gif)

```{r echo=TRUE}
intersect(x, y)
```

### Set Difference

> All rows from `x` which are not also rows in `y`, keeping just unique rows.

```{r setdiff}
source("R/setdiff.R")
<<remove-set-ops-ids>>
```

![](images/setdiff.gif)

```{r echo=TRUE}
setdiff(x, y)
```

![](images/setdiff-rev.gif)

```{r echo=TRUE}
setdiff(y, x)
```

## Tidy Data

```{r tidyr-wide-long}
source("R/tidyr_spread_gather.R")

tidy_plots <- list()
tidy_plots$wide <- bind_rows(sg_wide, sg_wide_labels)
tidy_plots$long <- bind_rows(sg_long, sg_long_labels)

tidy_plots <- map(tidy_plots, ~ mutate(.,
  .text_color = ifelse(grepl("id|key|val", value), "black", "white"),
  .text_size  = ifelse(grepl("id|key|val", value), 6, 10)
)) %>%
  imap(~ plot_data(.x, .y))

tidy_plots$wide <- tidy_plots$wide + ylim(-6.5, 0.5)

save_static_plot(cowplot::plot_grid(plotlist = tidy_plots, axis = "t"), "original-dfs-tidy")
```

![](images/static/png/original-dfs-tidy.png)

```{r echo=TRUE}
wide
long
```

### Spread and Gather

`spread(data, key, value)`

> Spread a key-value pair across multiple columns.

`gather(data, key = "key", value = "value", ...)`

> Gather takes multiple columns and collapses into key-value pairs, duplicating all other columns as needed. You use `gather()` when you notice that you have columns that are not variables.

![](images/tidyr-spread-gather.gif)

```{r echo=TRUE}
gather(wide, key, val, x:z)
spread(long, key, val)
```
