The ggplot2 xaringanthemer base plot theme

Lifecycle: Experimental.

Provides a base plot theme for ggplot2 to match the xaringan slide theme created by xaringanthemer. The theme is designed to create a general plot style from two colors, a background_color and a text_color (or foreground color). Also accepts an accent_color and an accent_secondary_color that are xaringanthemer is not required for the base theme. Use theme_xaringan() or theme_xaringan_inverse() in xaringan slides styled by xaringanthemer for a plot theme that matches the slide style.

theme_xaringan_base(
  text_color,
  background_color,
  ...,
  set_ggplot_defaults = TRUE,
  accent_color = NULL,
  accent_secondary_color = NULL,
  text_font = NULL,
  text_font_use_google = NULL,
  text_font_size = NULL,
  title_font = NULL,
  title_font_use_google = NULL,
  title_font_size = NULL
)

Arguments

text_color	Color for text and foreground
background_color	Color for background
...	Ignored
set_ggplot_defaults	Should defaults be set for ggplot2 geoms? Defaults to TRUE. To restore ggplot's defaults, or the previously set geom defaults, see theme_xaringan_restore_defaults().
accent_color	Color for titles and accents, inherits from header_color or text_color. Used for the title base setting in ggplot2::theme(), and additionally for setting the color or fill of ggplot2 geom defaults.
accent_secondary_color	Color for secondary accents, inherits from text_bold_color or accent_color. Used only when setting ggplot2 geom defaults.
text_font	Font to use for text elements, passed to sysfonts::font_add_google(), if available and text_font_use_google is TRUE. Inherits from text_font_family.
text_font_use_google	Is text_font available on Google Fonts?
text_font_size	Base text font size, inherits from text_font_size, or defaults to 11.
title_font	Font to use for title elements, passed to sysfonts::font_add_google(), if available and title_font_use_google is TRUE. Inherits from title_font_family.
title_font_use_google	Is title_font available on Google Fonts?
title_font_size	Base text font size, inherits from title_font_size, or defaults to 14.

Value

A ggplot2 theme

See also

Other xaringanthemer ggplot2 themes: theme_xaringan_inverse(), theme_xaringan_set_defaults(), theme_xaringan()

Examples

# Requires ggplot2
has_ggplot2 <- requireNamespace("ggplot2", quietly = TRUE)

if (has_ggplot2) {
  library(ggplot2)

  plot1 <- ggplot(iris) +
    aes(Petal.Length, Petal.Width) +
    geom_point() +
    theme_xaringan_base(
      text_color = "#602f6b",       # imperial
      background_color = "#f8f8f8", # light gray
      accent_color = "#317873",     # myrtle green
      title_font = "sans",
      text_font = "serif",
      set_ggplot_defaults = TRUE
    ) +
    labs(
      title = "Basic Iris Plot",
      subtitle = "+ theme_xaringan_base()",
      caption = "xaringanthemer"
    )

  print(plot1)

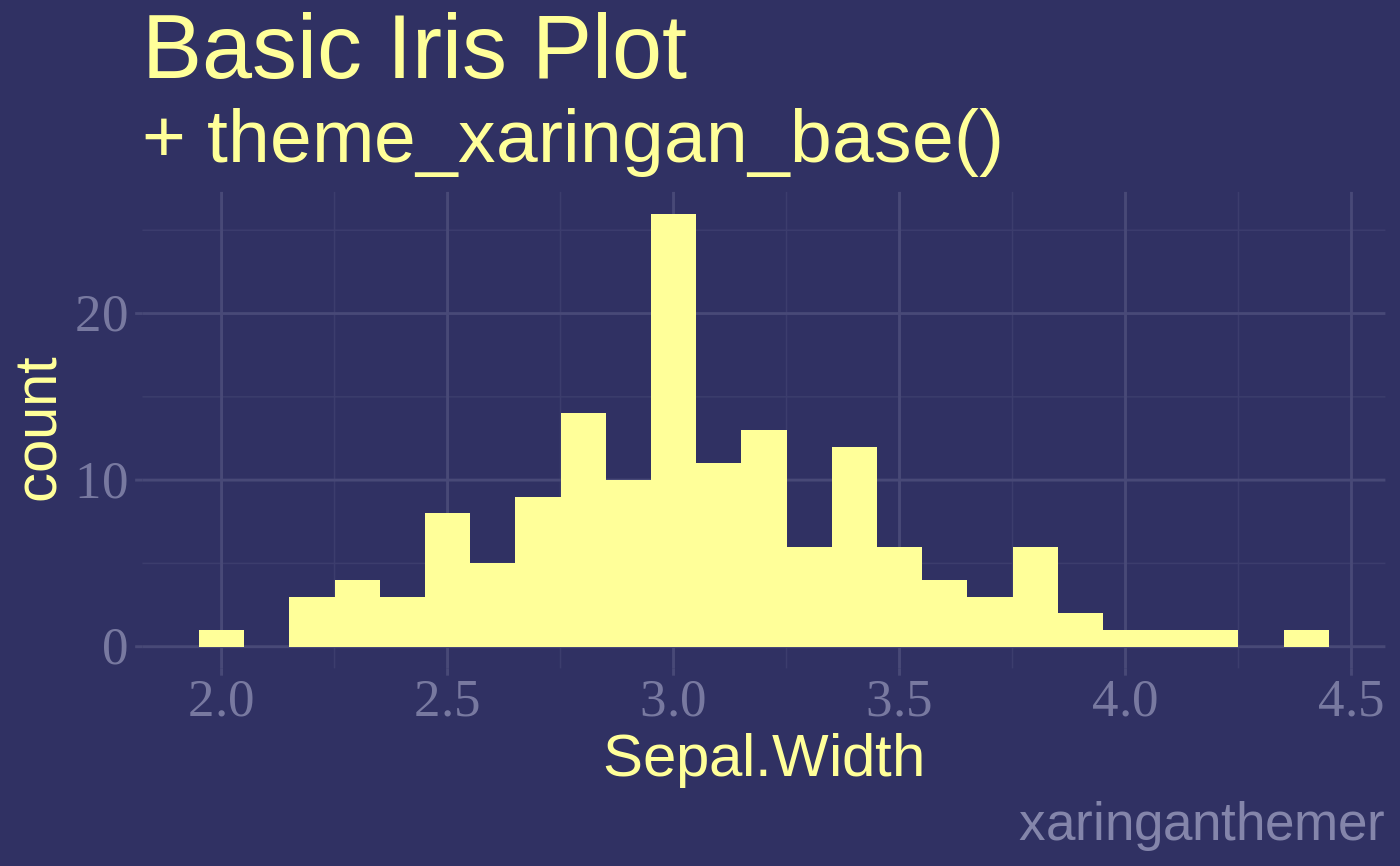

  plot2 <- ggplot(iris) +
    aes(Sepal.Width) +
    geom_histogram(binwidth = 0.1) +
    theme_xaringan_base(
      text_color = "#a8a9c8",       # light purple
      background_color = "#303163", # deep slate purple
      accent_color = "#ffff99",     # canary yellow
      title_font = "sans",
      text_font = "serif",
      set_ggplot_defaults = TRUE
    ) +
    labs(
      title = "Basic Iris Plot",
      subtitle = "+ theme_xaringan_base()",
      caption = "xaringanthemer"
    )

  print(plot2)
}
